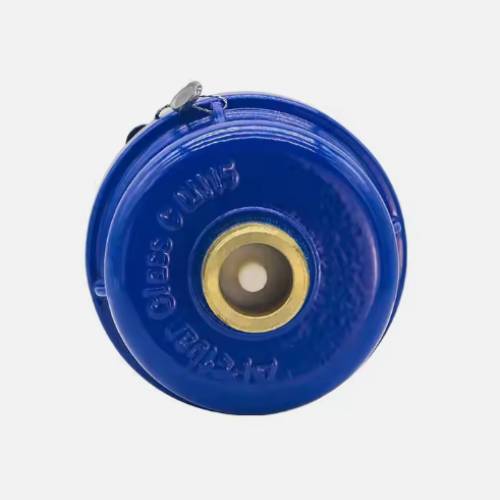

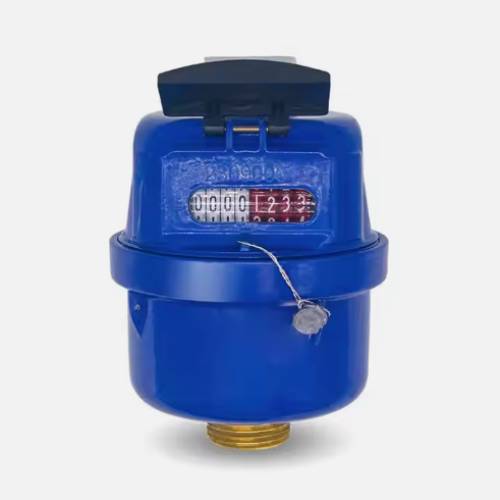

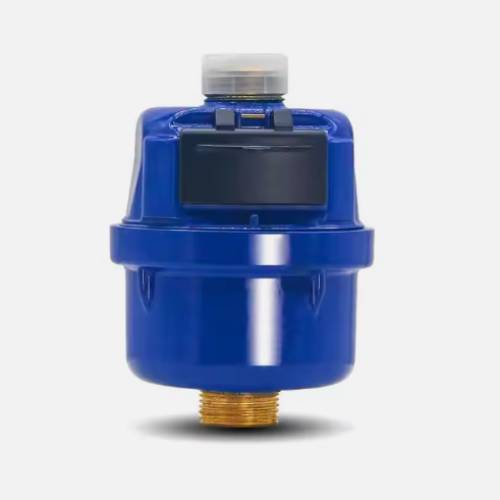

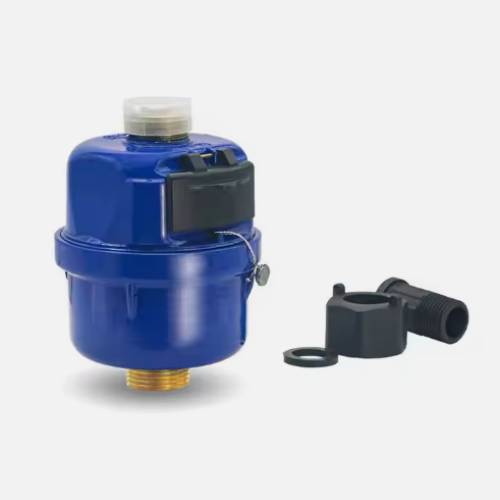

A Volumetric Mechanical Water Meter is a device that measures the volume of water flowing through a pipe using mechanical principles. It consists of a measuring chamber with a rotating piston or impeller. As water flows through the meter, the piston or impeller rotates at a speed proportional to the flow rate. The rotation is then converted into a numerical display, typically in cubic meters or gallons.
Volumetric Mechanical Water Meters are highly accurate and reliable, and they are widely used in residential, commercial, and industrial applications. They are particularly well-suited for measuring water consumption in situations where accuracy and long-term reliability are critical.
Parameter of Volumetric Mechanical Water Meter | |
1. Brass body
2. Dry-dial
3. Multiple-jet
4. Magnetic drive
5. Vacuum sealed register. The reading can be kept clear in long-term
service.
6. Antimagnetic construction
7. Measuring accuracy is up to class B of ISO 4064 Standard.
8. Selected high quality materials. Steady & reliable characteristics
ERROR CURVE:
From Q1 inclusive up to but excluding Q2 is ± 5%;
From Q2 inclusive up to and including Q4 is ± 2%
for T 30 and ± 3% for T 50
