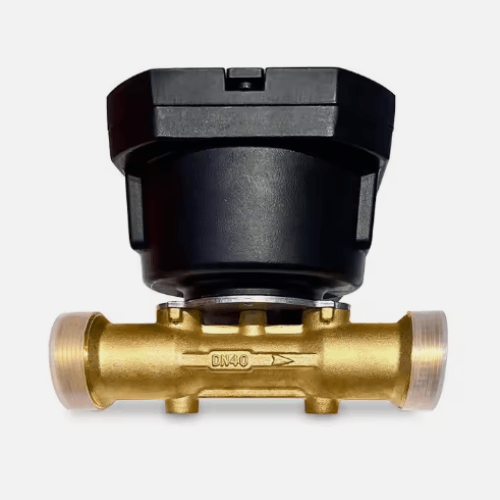

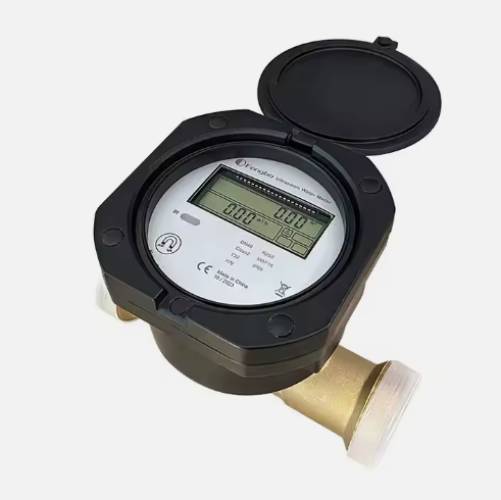

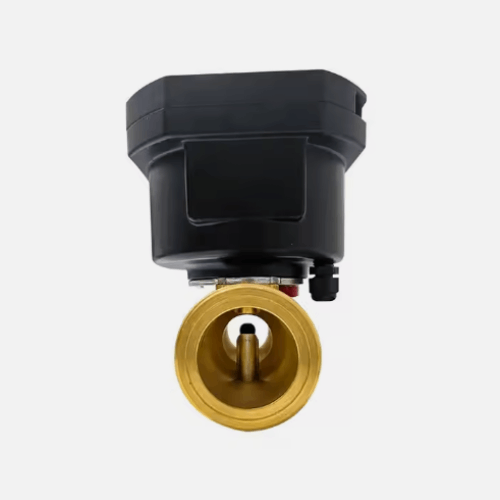

This type ultrasonic water meter can be selected in DN32 or DN40 diameters, and the ultrasonic technology is more accurate. The ultrasonic water meter has a clear and convenient LCD display that provides real-time readings and diagnostic information. The copper material makes it more durable and is usually used in industrial facilities or commercial building scenes.

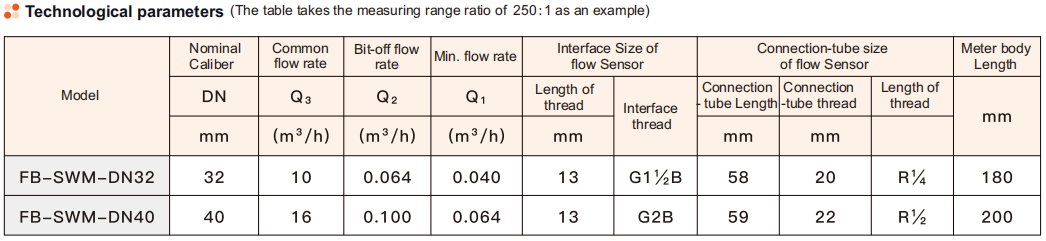

Parameter of DN32 DN40 Ultrasonic Water Meter | |||
| Range Ratio | R400 | Environmental Class | Class O |
| Type | DN32,DN40 | EME Class | E1 |
| Pressure Rating | MAP16 | Flow Field Sensitivity | U5/D3 |
| Max.Pressure Loss(Mpa) | <=0.040 | Battery Life | 6+1 Year |
| Temperature Class | T30 | Data Storage | 24 Month Historical Data,Alarm Time And Alarm Source |
| Protection Class | IP68 | Pipe Segment Material | Brass |
| Local Communication | Infrared Meter Reading Interface(M-BUS,485 Optional) | ||
| Internet-of-Thing Networking | NB-IoT,complete set of the Operation and Management System Platform | ||
| Installation Mode | H/V | ||

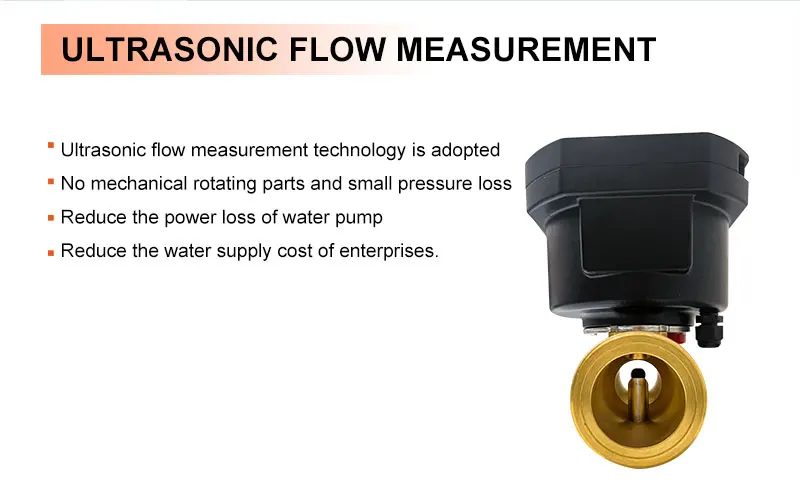

1. ULTRASONIC FLOW MEASUREMENT
Ultrasonic flow measurement technology is adopted
No mechanical rotating parts and small pressure loss
Reduce the power loss of water pump
Reduce the water supply cost of enterprises.

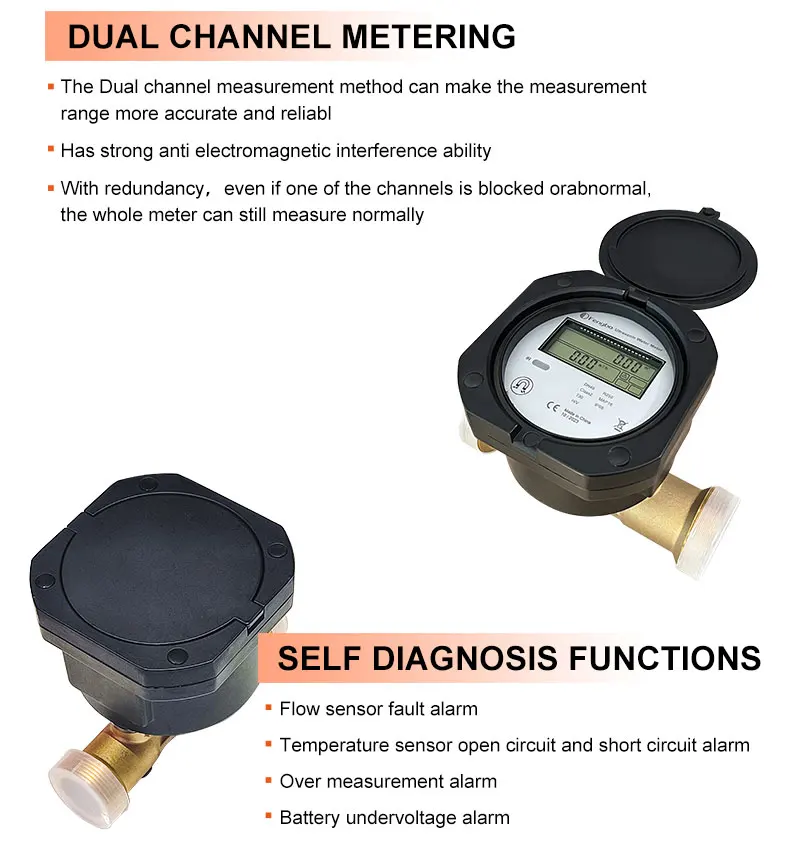

2. DUAL CHANNEL METERING
The Dual-channel measurement method can make the measurement range more accurate and reliable
Has strong anti-electromagnetic interference ability
With redundancy, even if one of the channels is blocked or abnormal, the whole meter can still measure normally
3. SELF DIAGNOSIS FUNCTIONS
Flow sensor fault alarm
Temperature sensor open circuit and short circuit alarm
Over measurement alarm
Battery undervoltage alarm
