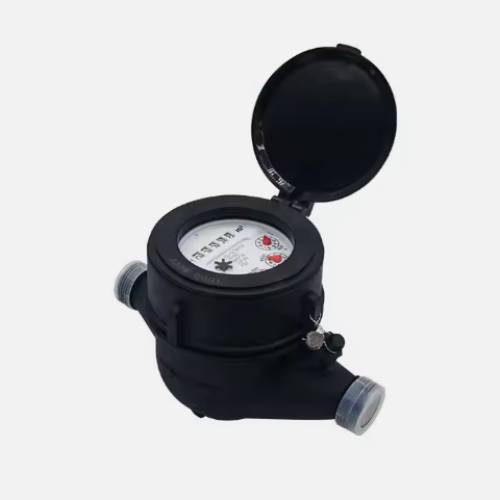

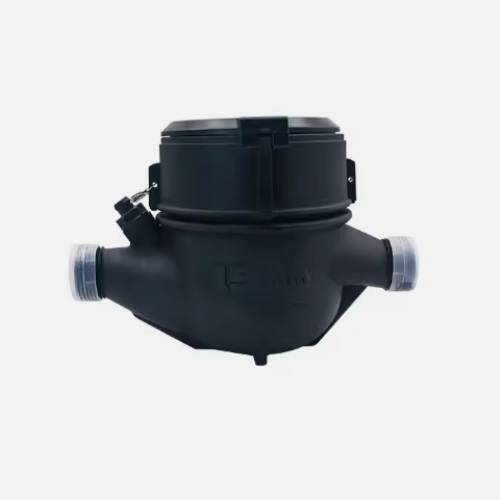

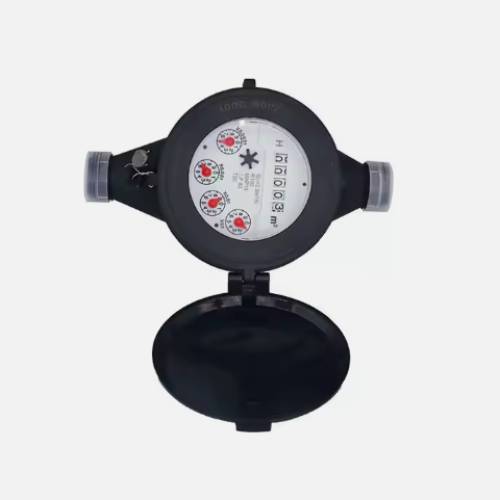

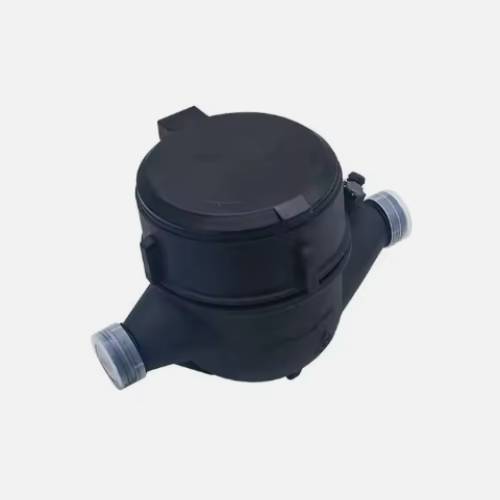

Multi jet dry dial water meter is a device used to measure the volume of water flowing through a pipe. It works by using multiple jets of water to spin a rotor, which in turn drives a set of gears that move the dials. The dials display the total volume of water that has flowed through the meter. Dry dial water meters are designed to prevent water from coming into contact with the dials, which can cause corrosion and inaccurate readings.

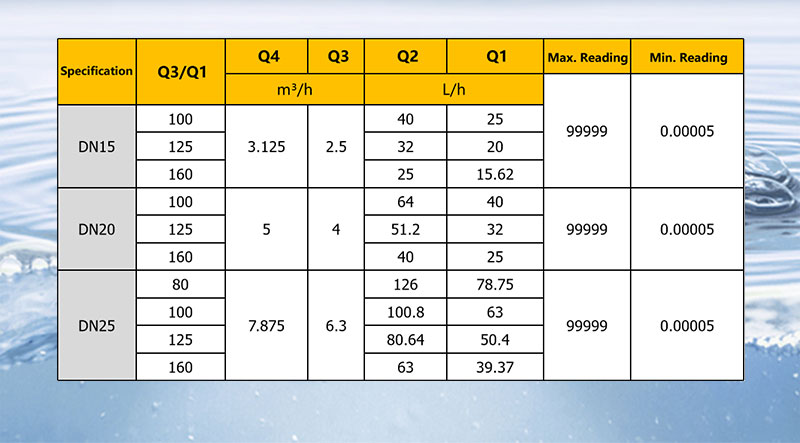

Parameter of Multi Jet Dry Dial Water Meter | |
1. Dry dial , magmatic drive , resistance to the exterior magnet interference, against tampering and ensures accurate readings.
2. Multi-jet design provides accurate and stable flow measurement.
3. Selected the high quality materials for steady and reliable characteristic, resistance to corrosion and wear.
4. Vacuum seald register , ensure the dial keep free from fog and keep reading clear for longterm service.
5. Measuring accuracy can conform to ISO 4064 Class B standard
6. Inner and outer adjustment options allow for fine-tuning of the meter's accuracy.
7. The compact size and lightweight design make the meter easy to install and maintain.
