The TDS-100H is a portable ultrasonic flowmeter used to measure the velocity of liquids in pipes. It is a non-invasive flowmeter, meaning that it does not require contact with the liquid being measured. The TDS-100H uses ultrasonic waves to measure the flow velocity. The ultrasonic waves are transmitted through the pipe wall and into the liquid. The waves are reflected off of particles in the liquid and return to the transducer. The time it takes for the waves to travel through the liquid is used to calculate the flow velocity.
Parameters of TDS 100h Handheld Ultrasonic Flowmeter | |
| Product Name | Clamped type digital handheld liquid tds 100h ultrasonic flow meter |
| Diameter | DN15~6000mm |
| Water pressure | 0.6mpa~4mpa |
| water temperature | -25~180c |
| Standard | ce, iso9001 |
| Power supply | 240vAC/24vDC/3.6vDC |
| Flange standard | GB,ANSI150,DIN,JIS,BS |
| Electrode | SS316L,HB,HC,TI,TA |
| Accuracy | 0.005 |
| Output | 4-20mA |
| Price | $26-$346 |

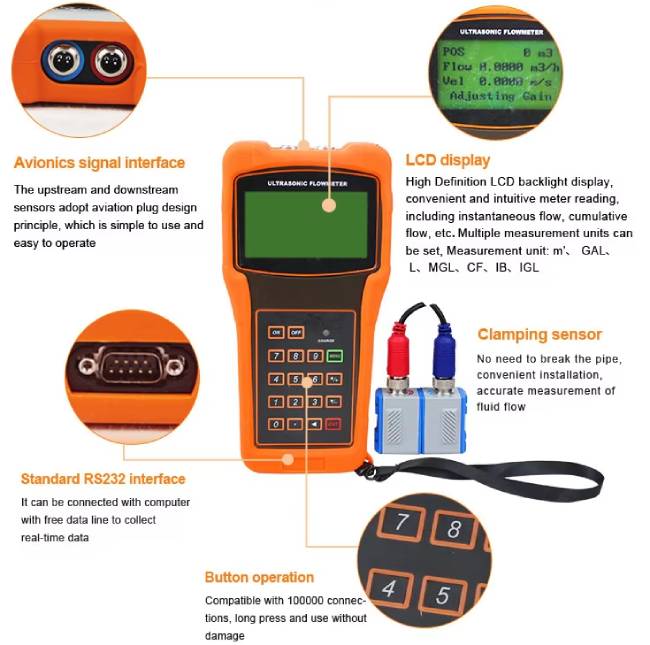

1. Non contact measurement, small size, light weight, easy to carry
2. The sensor is easy to install and can be used to measure sound con-ducting medium of various sizes of pipes
3. There is no need to damage the pipeline and stop production during the measurement
4. Built in rechargeable battery, it can work continuously for more than 12 hours
5. Compact, solid, international advanced die casting aluminum host
6. Automatic memory of the first 512 days, the first 128 months, the firstfive years of cumulative flow
7. Backlight LCD displays instantaneous flow rate, positive, negative, static cumulative flow rate, flow rate, time, analog input and other datain Chinese
