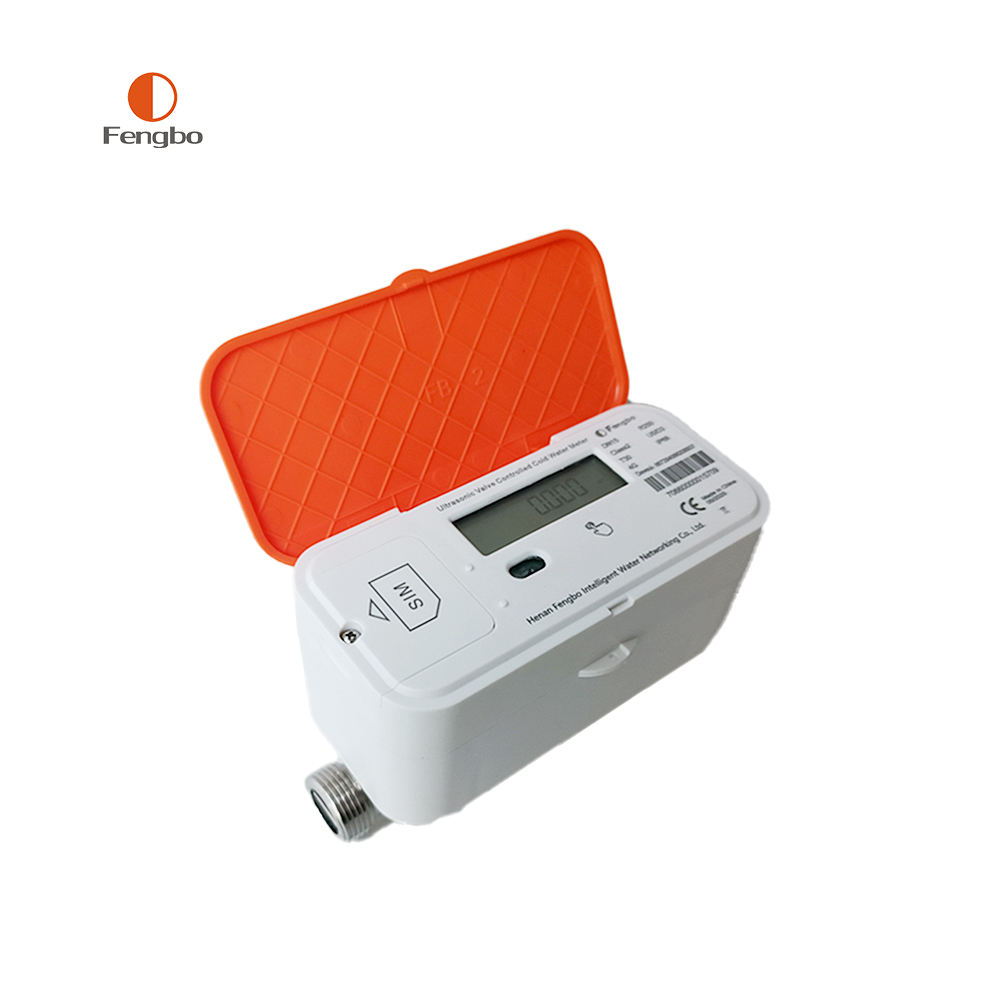

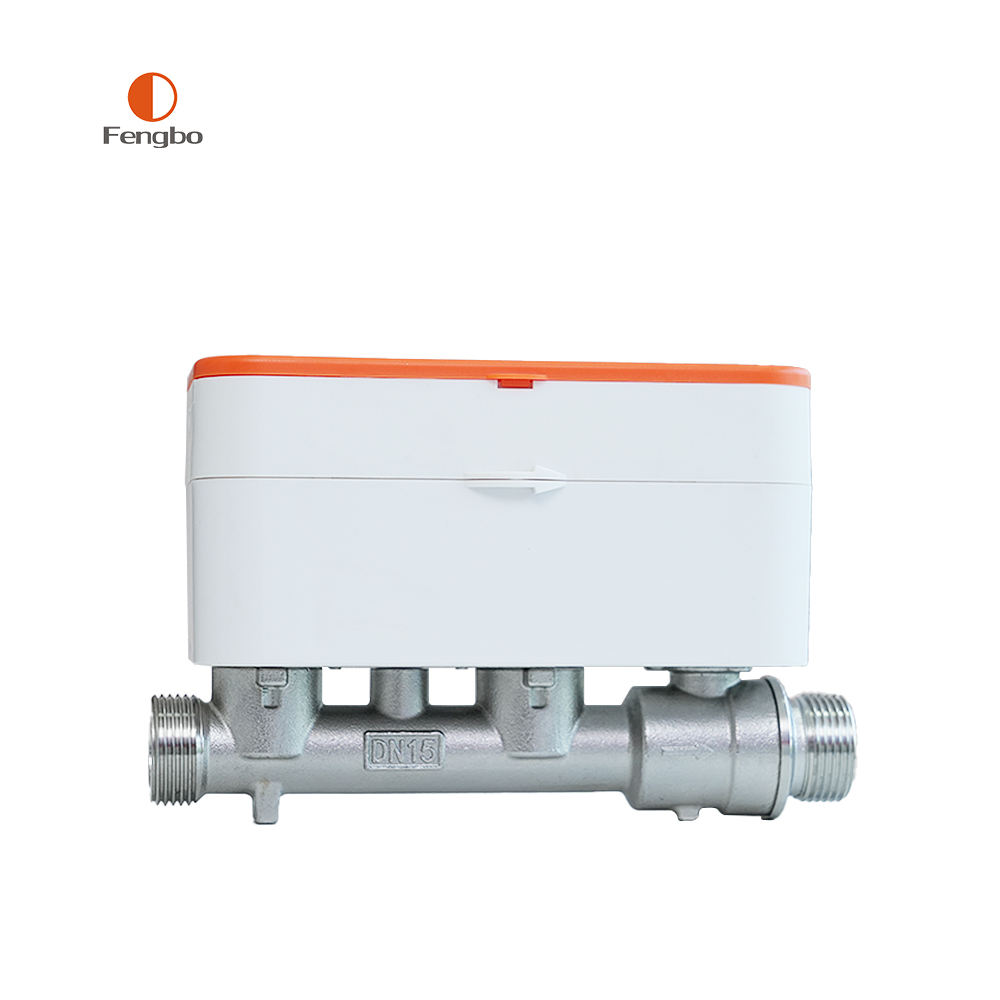

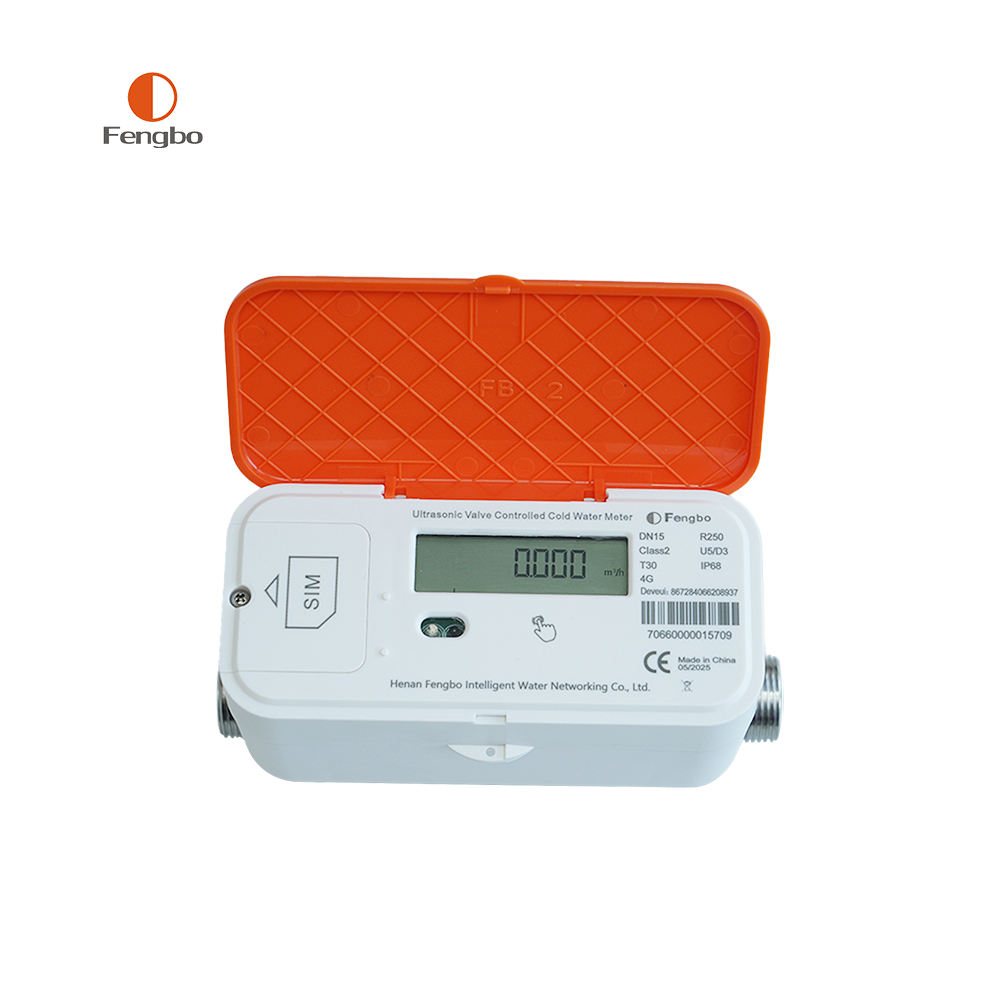

4G SIM Card Ultrasonic Water Meter - Photo 0
4G SIM Card Ultrasonic Water Meter - Photo 1
4G SIM Card Ultrasonic Water Meter - Photo 2
4G SIM Card Ultrasonic Water Meter - Photo 3
4G SIM Card Ultrasonic Water Meter - Thumbnail 0
4G SIM Card Ultrasonic Water Meter - Thumbnail 1
4G SIM Card Ultrasonic Water Meter - Thumbnail 2
4G SIM Card Ultrasonic Water Meter - Thumbnail 3

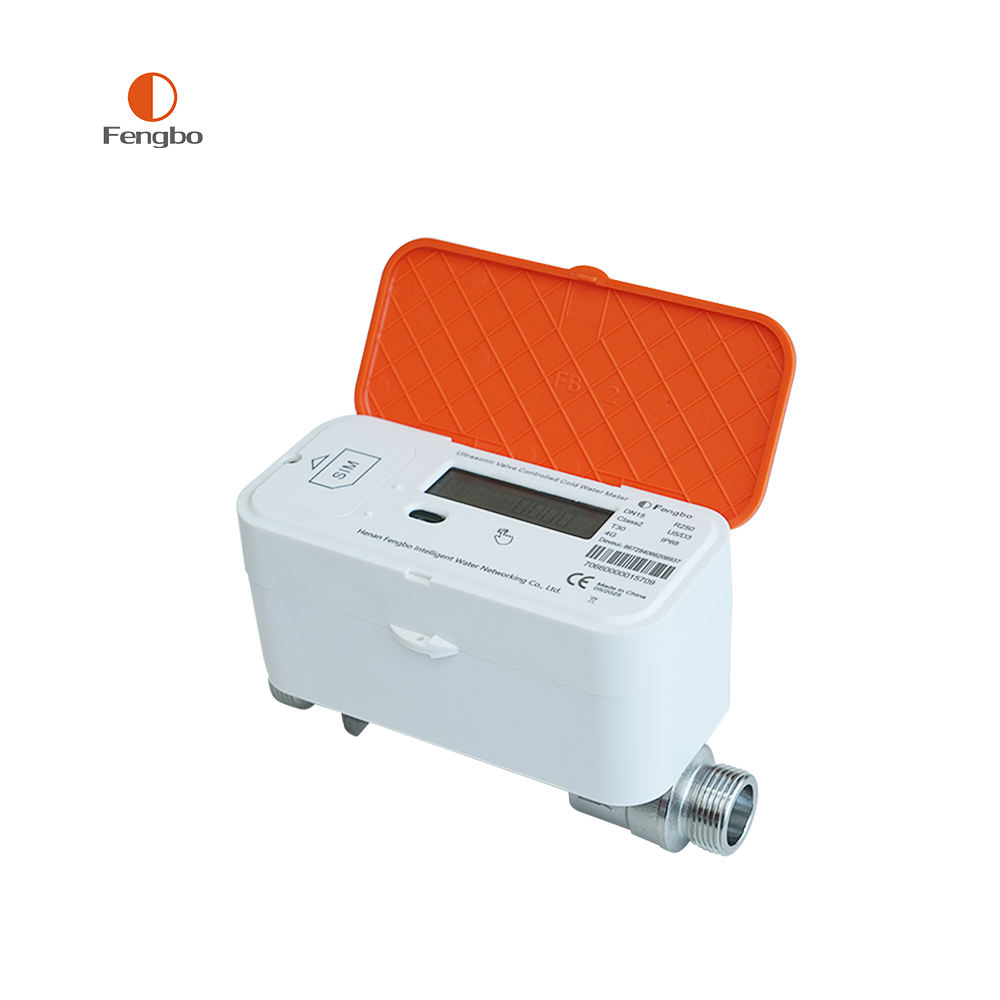

4G SIM Card Ultrasonic Water Meter

Product Type :
Ultrasonic Water Meter
Nominal Diameter :
DN15,20
Range Ratio :
R160 R200 R250 R400
Protection Level :
IP68
Maximum Pressure :
1.6MPa
Maximum Temperature :
T30
Substrate :
Nylon
OEM :
Yes
Share:
Product Introduction

Key Features of Fengbo's Ultrasonic Smart Water Meter

1. Remote Monitoring and Control: Equipped with 4G connectivity, users can remotely monitor water usage and control the meter via a cloud platform, ensuring efficient water management.

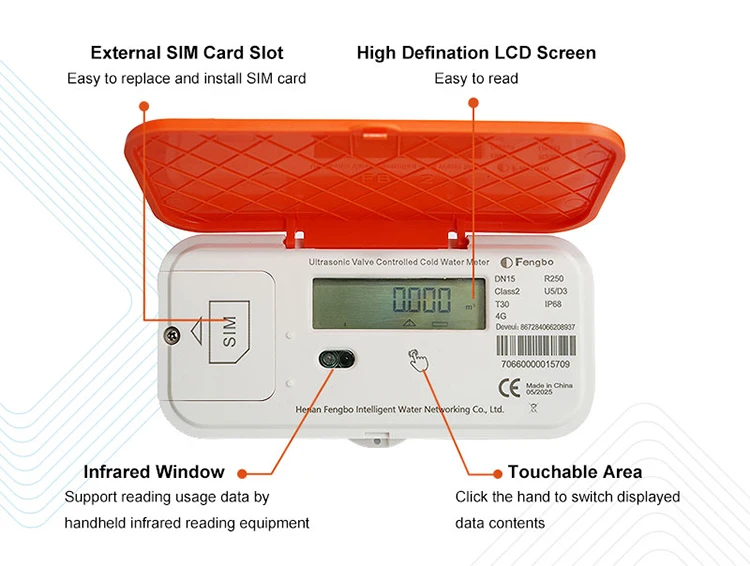

2. Innovative external card design: With external card slot design, the 4G card is easy to install and can be replaced without professional technicians, making it more convenient to use while ensuring the installation effect.

3. High Accuracy and Stability: Utilizing ultrasonic technology, these meters provide precise measurements with minimal pressure loss, making them ideal for various applications, including domestic water metering and central air conditioning systems.

4. Durability and Longevity: Fengbo’s smart water meters are designed with strong anti-pollution and anti-corrosion capabilities, offering a long service life and requiring less maintenance compared to mechanical meters.

5. Valve Control Functionality: The built-in valve mechanism allows for automatic closure when payment is in arrears and reopening upon recharging, facilitating seamless prepaid water management.

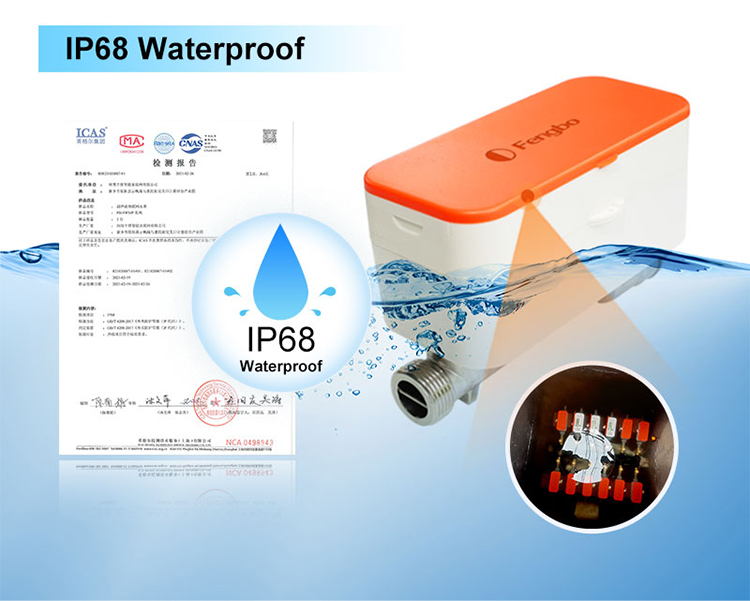

6. Compliance and Protection: With IP68 protection, these meters are robust and environmentally friendly.

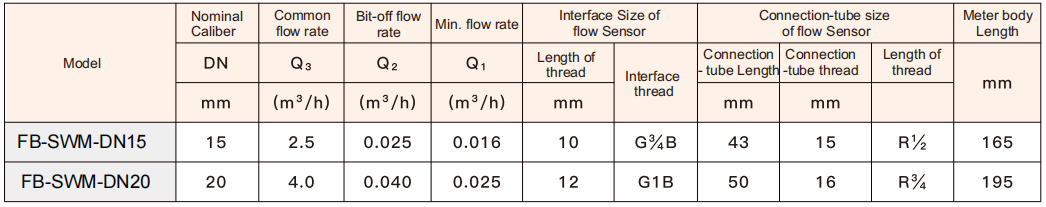

Parameter of 4G SIM Card Ultrasonic Water Meters

Meter Type

Ultrasonic Water Meter

Accuracy Class

Class B

Range Ratio

R250, R400 accept customized

Type

DN15 (DN 20/25mm for your option as well)

Pressure Rating

MAP16

Max. Pressure Loss (Mpa)

<=0.040

Temperature Class

T30/T50

 Protection Class

IP 68

Environmental Class

Class O

EME Class

E1

Flow Field Sensitivity

U5/D3 U0/D0

Battery Life

8+2Years

Data Storage

24 months historical data, alarm time and alarm source

Pipe Segment Material

 Nylon / Brass / Stainless Steel

Internet-of-Things networking

4G-Cat.1
